TECHNICAL SPECIFICATIONS
Product Code | LBR-OD |
|---|---|
Adjustments | Spring assisted seat adjustments |
Footprint (L x W x H) | 68″ x 51″ x 51″ (metric cm: 173 x 130 x 130) |
Recommended Live Area (L x W x H) | 110″ x 120″ x 51″ (metric cm: 279 x 305 x 130) |
Machine Weight | 210 lbs (96 kg) |
Max Training Weight | 500 lbs (227 kg) |
Vertical height from floor to Seat Pad | 17″ (43.2 cm) |
Vertical height from floor to Top Bar Support | 37″ (94 cm) |
Vertical height from floor to Bottom Bar Support | 30.5″ (77.5 cm) |
Head Pad Size (at the widest point of the contoured sides) | 10″ x 9″ (25.4 x 22.8 cm) |
Back Pad Size (at the widest point of the contoured sides) | 11″ x 32″ (27.9 x 81.3 cm) |
MAKE IT YOUR OWN WITH

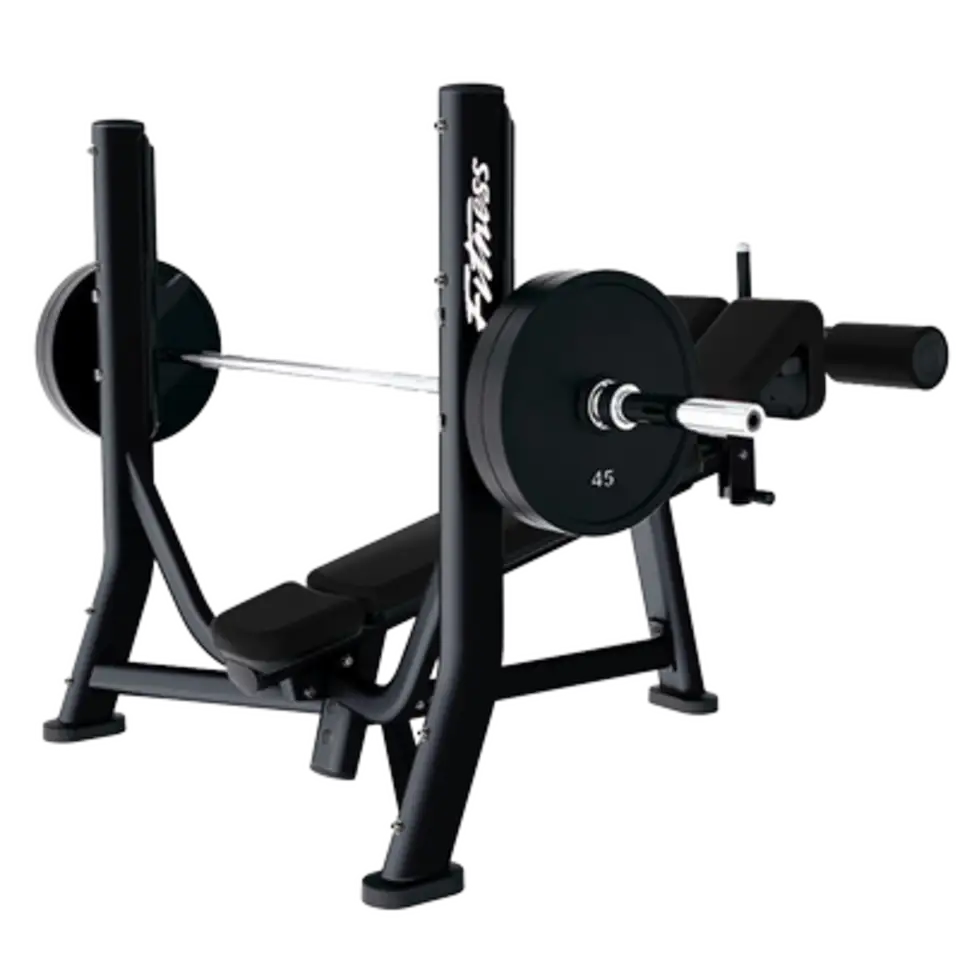

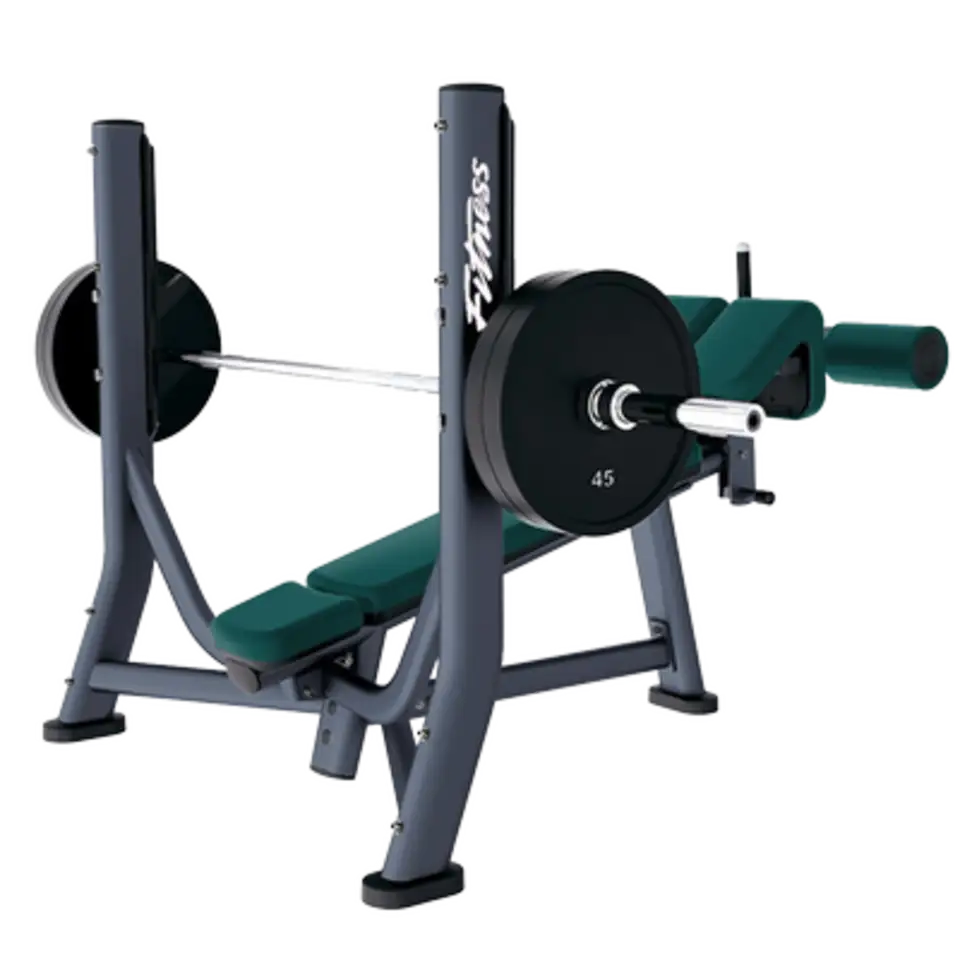

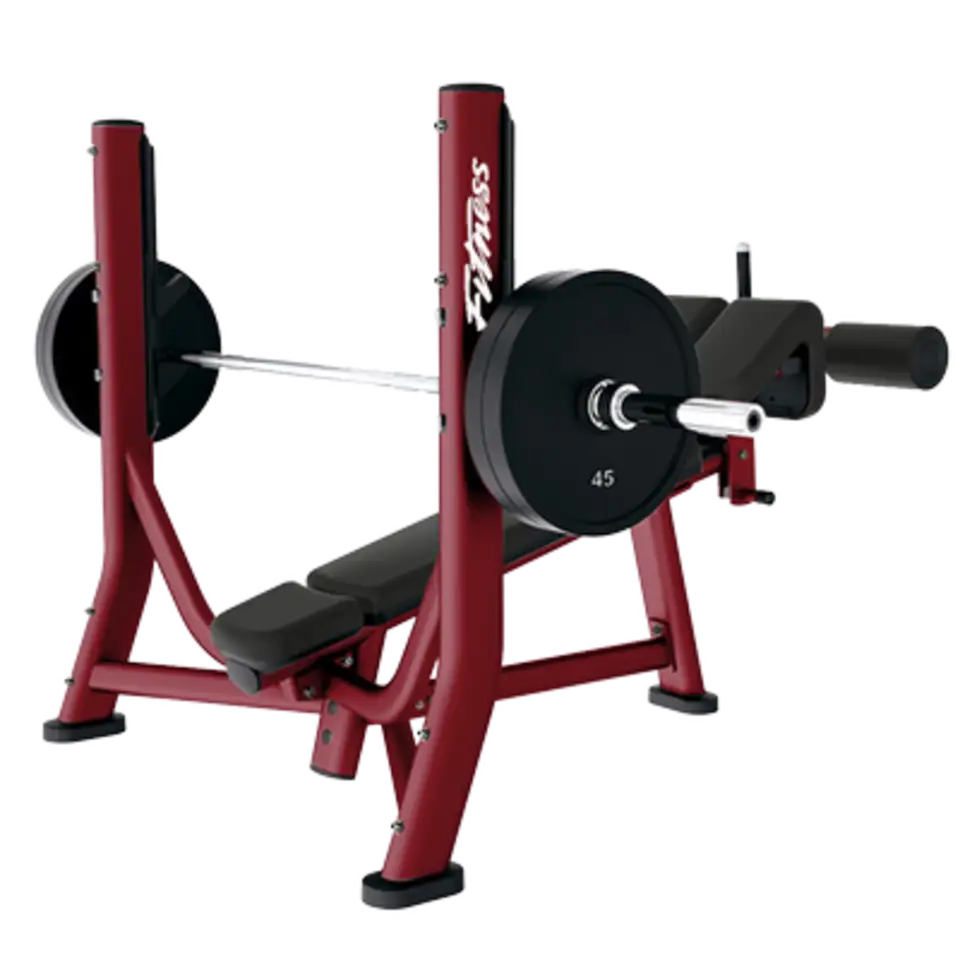

Color Options
Match your facility color scheme and the intensity of your
workouts.
