TECHNICAL SPECIFICATIONS
Product Code | HS-FPD |
|---|---|
Size (L x W x H) | 55″ x 58″ x 73″ (metric cm: 139 x 147 x 185) |
Recommended Live Area | 107″ x 58″ x 73″ (metric cm: 272 x 147 x 185) |
Machine Weight | 620 lb (281 kg) |
Weight Stack(s) | 295 lb (138 kg)
|
Max User Weight | 300 lb (136 kg)
|
Cables | 7×19 strand construction, lubricated, nylon-coated cable meets U.S. military specifications |
Instructional Placards | Easy-to-follow instructions illustrate proper use and muscles trained; Axis of rotation marked with red indicator to help cue correct alignment |
Belts and Pulleys | 4-1/2″ (11 cm) and 6″ (15 cm) diameter fiberglass-impregnated nylon pulleys feature sealed bearings
|
Cushioning | Pads are molded with radius on edge for improved comfort; All edges are stitched to eliminate any folds in the material that would limit durability |
Shrouds | Standard rear shroud on SE models; Optional full front shroud on SE models
|
Weight Plates and Guide Rods | Solid-steel weight plates. Top weight plate is fitted with self-lubricating bushings; 7/16″ (11 mm) diameter weight selector pin magnetically locks in place and is connected to stack to prevent loss; Drop down incremental weight system (standard on SE models)
|
Adjustments | Roller mechanism on seat adjustment provides smooth operation |
Foot Platforms | Each frame receives an electrostatic powder coat finish to ensure maximum adhesion and durability; Standard rubber feet protect base of the frame and prevent the machine from slipping; 11-gauge steel frame ensures maximum structural integrity
|
Hand Grips | Grips retained with aluminum collars, preventing them from slipping during use; Hand grips are an extruded thermo rubber compound that is non-absorbing and wear-and-tear resistant
|
MAKE IT YOUR OWN WITH

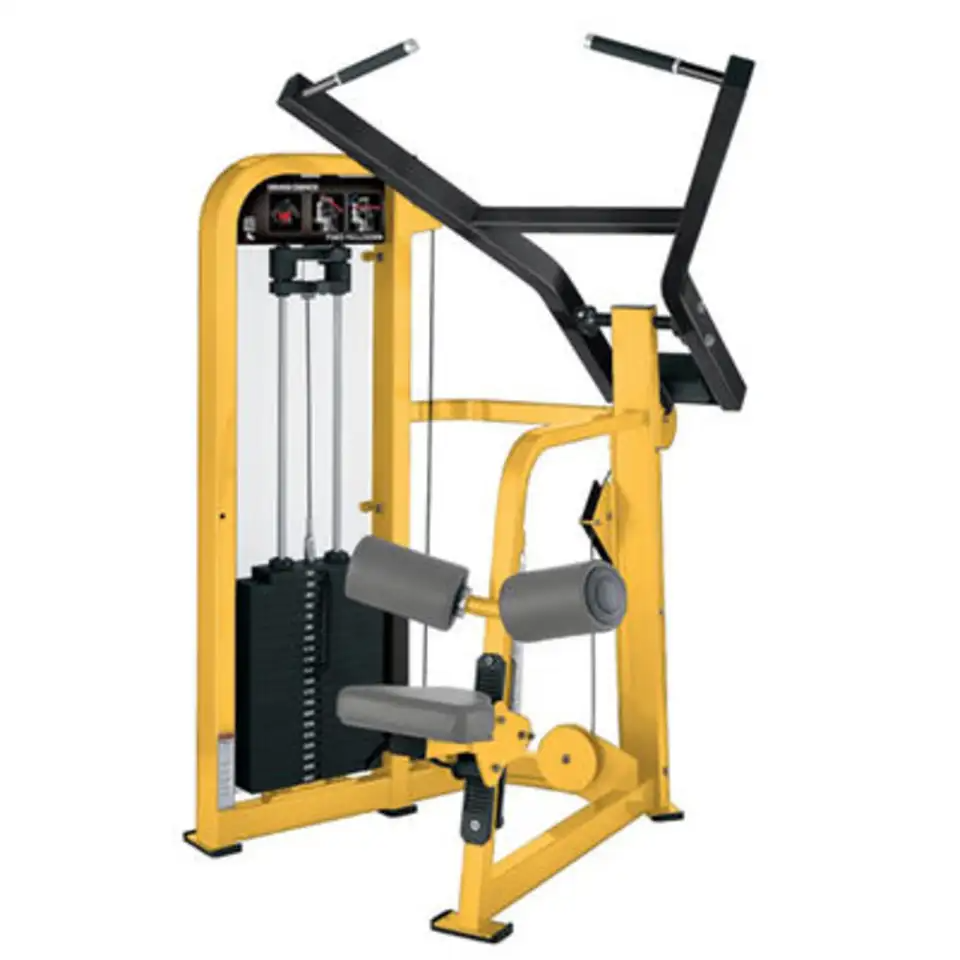

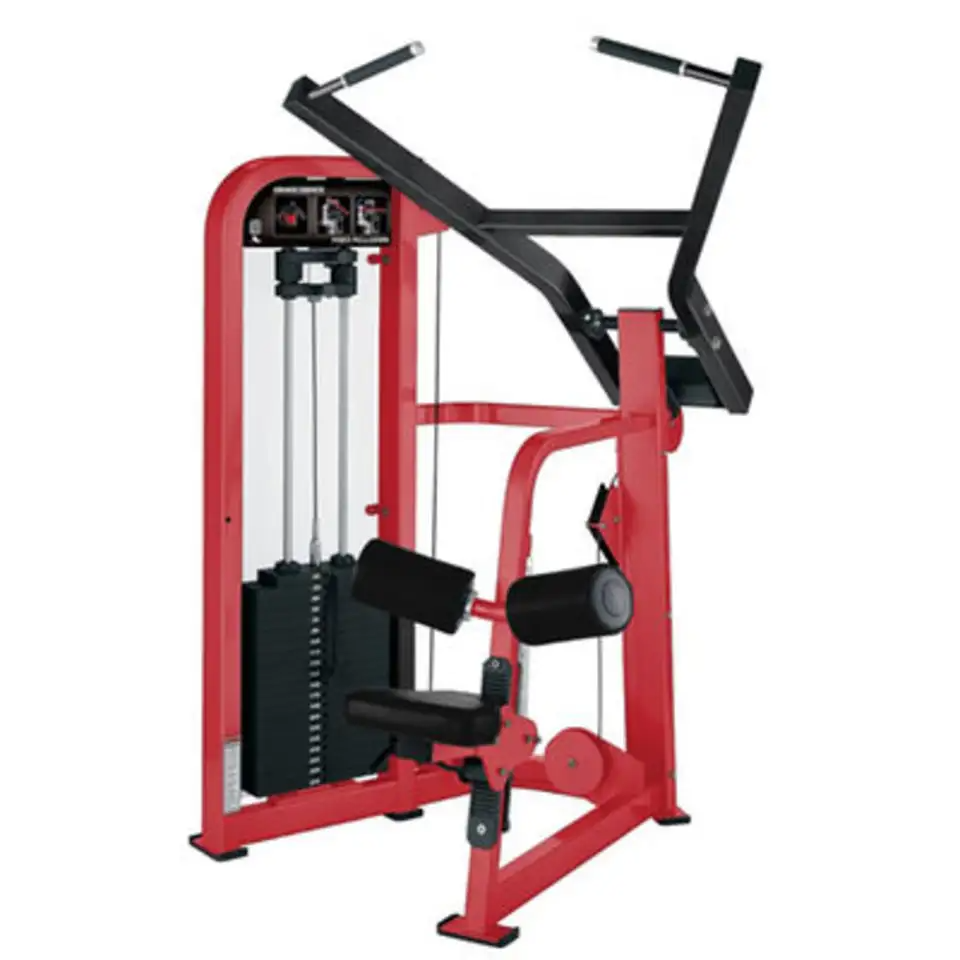

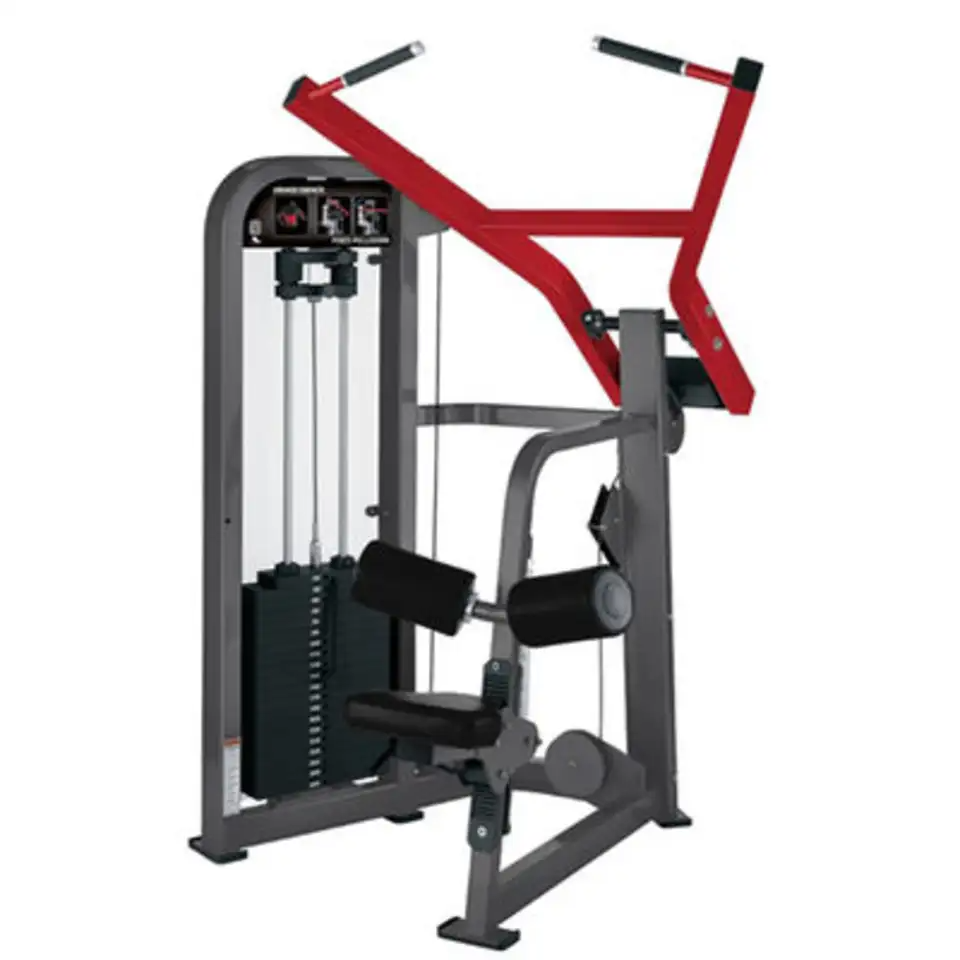

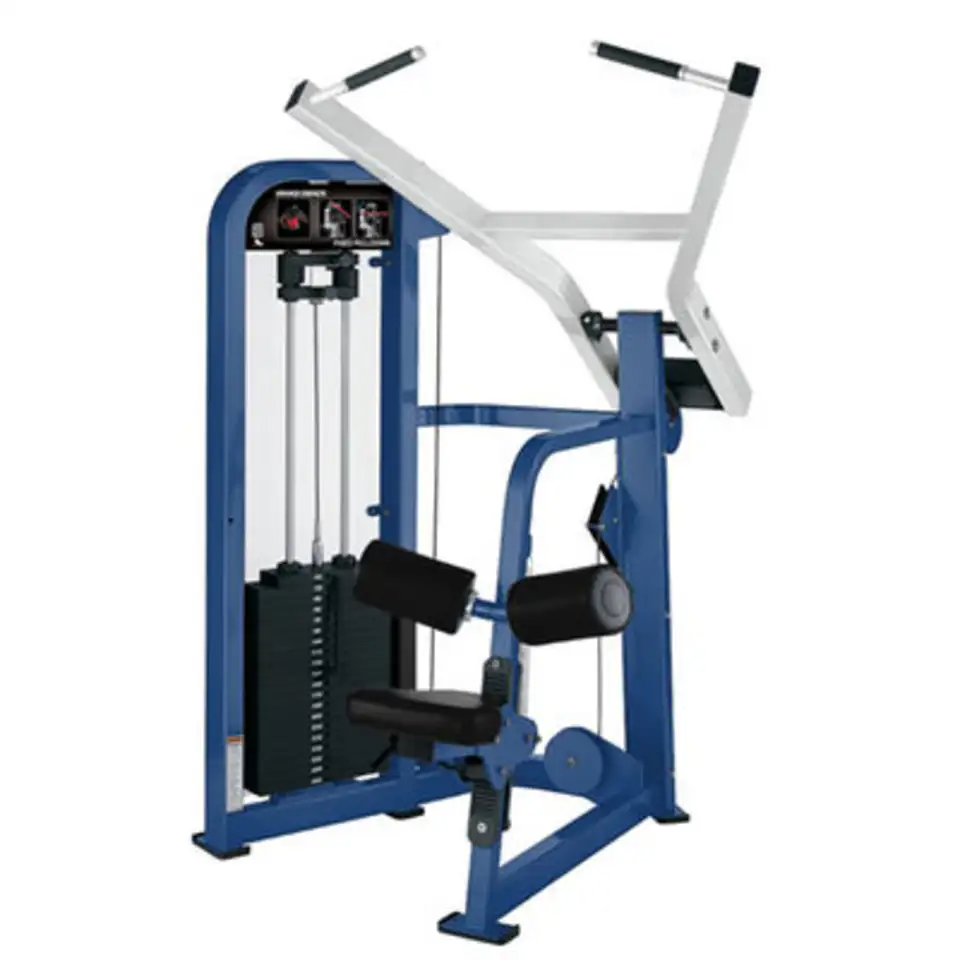

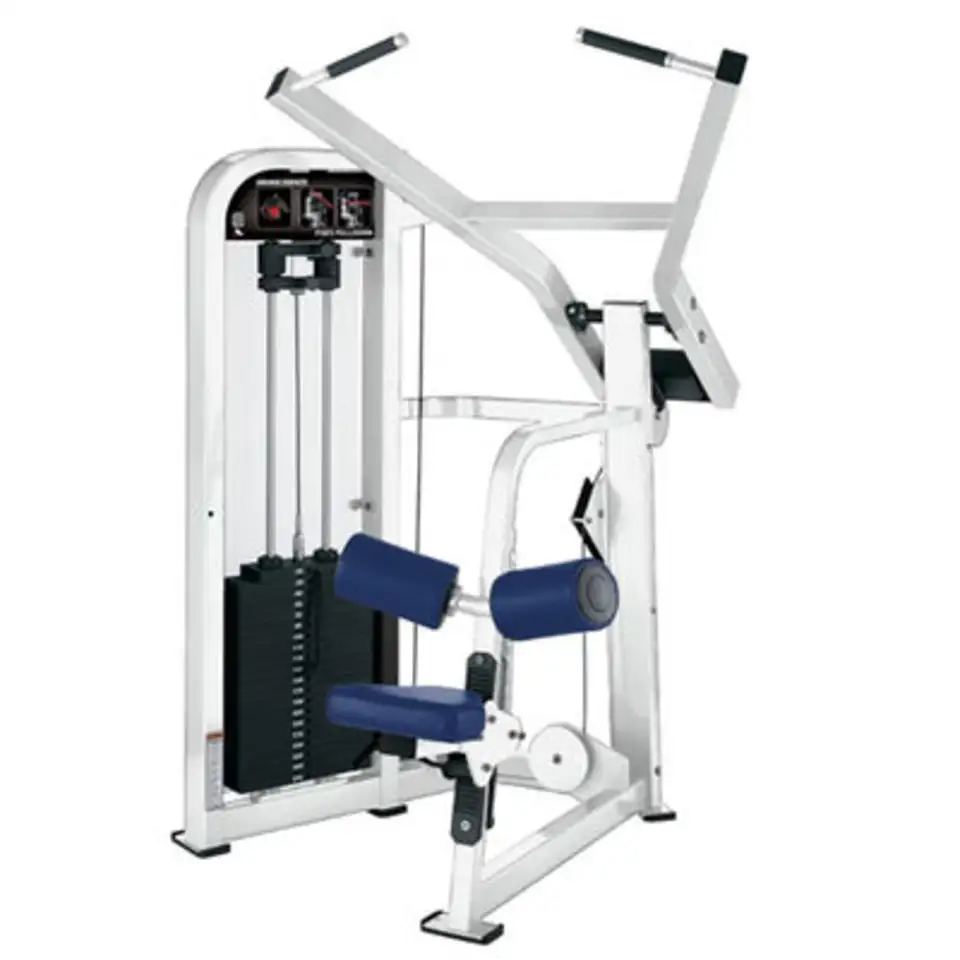

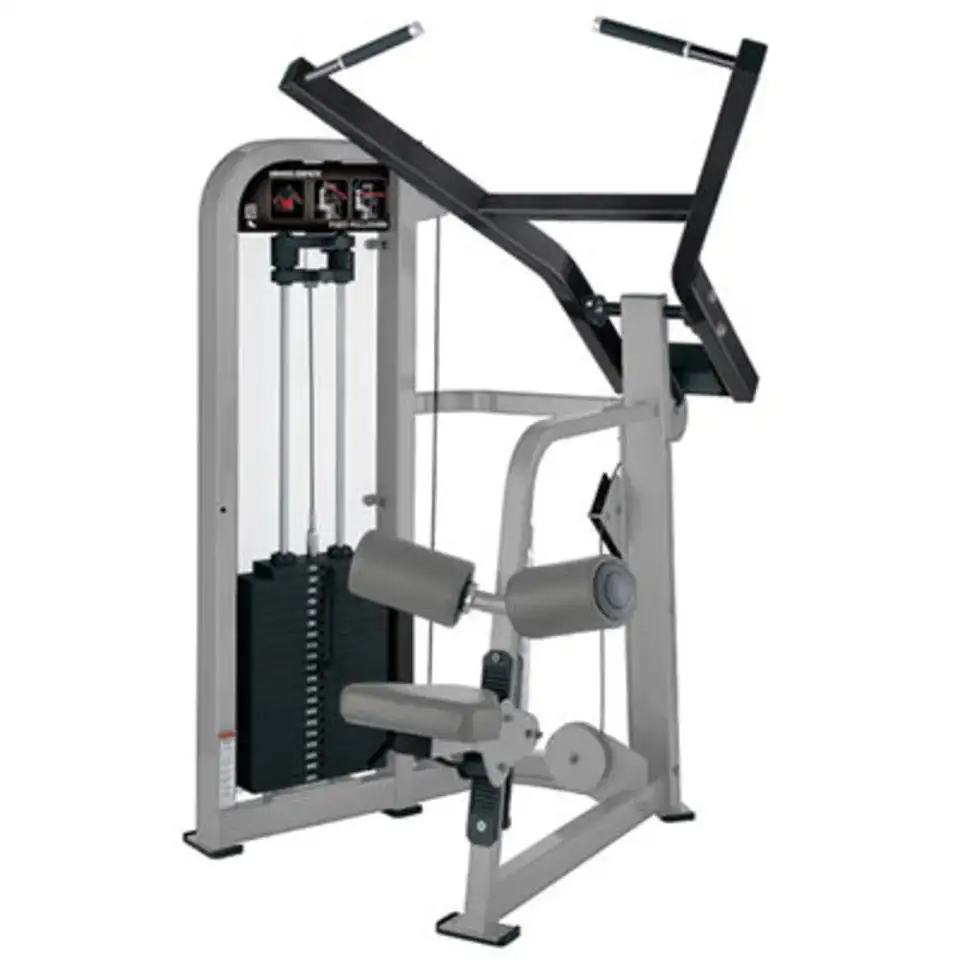

Color Options
