CONSOLES FOR EVERY EXERCISER
Consoles for every budget and exerciser’s needs.
Life Fitness
SL Console
- Get on and go functionality
- Large LED display
- 17 to 22 workouts
- Bluetooth® connection to heart rate straps, headphones and mobile devices
- Wi-Fi, ANT+, and NFC compatibility
- Connects to Apple Watch®
Life Fitness
Discover SE4 Console
- Slim design with Advanced In Cell Touch Technology (AIT).
- Life Fitness On Demand+ featuring more than 500 complimentary experiences.
- Content customisation.
- Wireless mobile device charging.
- Apple Watch® and Samsung Galaxy Watch® wearable compatibility.
- Full range of streaming and entertainment apps.
TECHNICAL SPECIFICATIONS

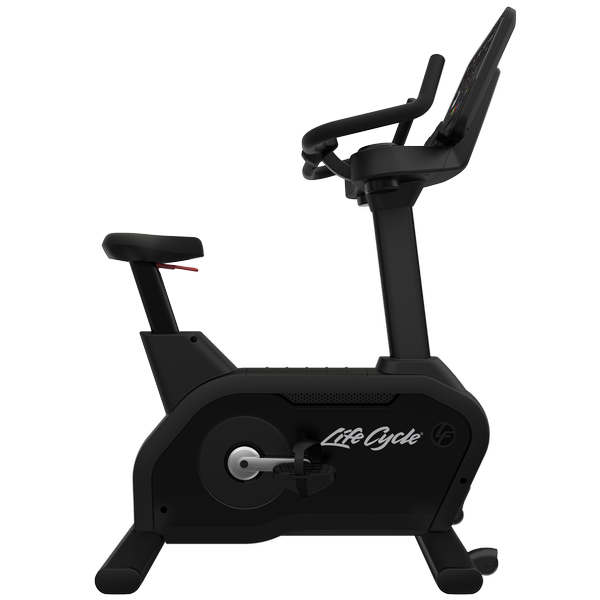

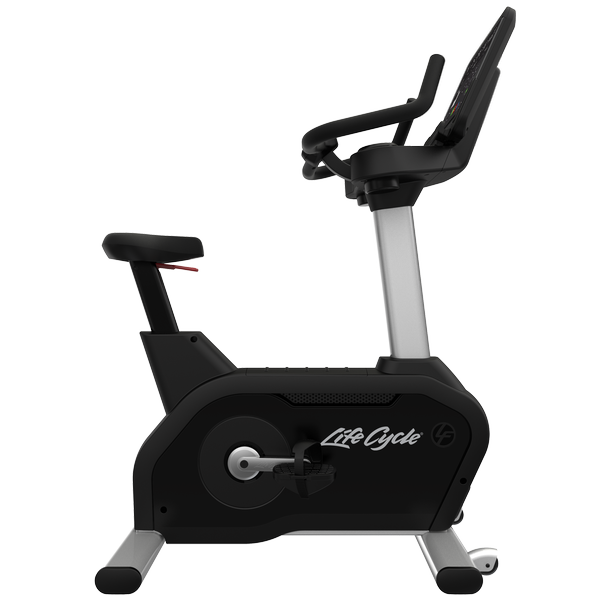

Description | Aspire Upright Bike |
|---|---|
Console | SL |
Handlebars | Racing Handlebars |
Remote Buttons | No |
Saddle | Improved Confort Curve™ Seat |
Pedals | Wide Ride™ Pedals
|
Pedal size | 6.56″ x 5.5″ (16.7 cm x 14 cm |
Pedal Straps | Yes |
Accessories Holder | Integrated Accessory Tray |
Color | Arctic Silver, Smooth Charcoal |
Seat Adjustment | 42 Fine-Tuned Seat Adjustments w/easy to reach height adjustment lever; Lowest: 18.25″” (46.36 cm) Highest: 31.5″” (80.01 cm) Delta: 13.25″” (33.66 cm), Adjustment 14″ (35.56 cm)
|
Step-over height | 21.14″ (536.9 mm)
|
User Height Range | 4’9″ (144.78 cm) – 6’5″ (195.58 cm) |
Max User Weight | 400 lb (182 kg) |
Transport Wheels | Yes |
Drive System | Generator Drive System with 8-Ribbed Poly-V Belt resistance system |
Resistance Levels | 26 |
Resistance Type | Hybrid Eddy current brake with brushless internal generator for low drag and high power capability
|
Belt Drive | Single stage drive with self-tensioning idlers for minimal mechanical drag and low maintenance |
Multi Ribbed Belt Drive | Yes |
Generator | Generator |
Crank size | 6.5″ (16.51 cm)
|
Touch | Yes |
Telemetry | Yes |
Self-powered | Yes |
Power Requirements | North America: 120V, 20A outlet with dedicated line, neutral, ground wires and dedicated circuit breaker, Japan: 100V, 20A; International: 230V, 10A outlet with dedicated line, neutral, ground wires and dedicated circuit breaker, Japan: 200V, 10A; Discover Consoles – 24V, 3.75A (90W) Attachable TV- 24V, 2.5A (60W) SL Non-Treads, Optional Power – 24V, 2.5A (60W) |
Minimum Watts | 29 Watts |
Maximum Watts | 900 Watts |
Minimum RPM | 30 rpm |
Assembled Dimensions | Length 41.5″ (105cm), Width 24.5″ (62cm), Height 54.5″ (138cm)
|
Assembled Weight | 169lbs (76.5kg) |
Shipping Weight | 200lbs (91kg)
|
Shipping Configurations (for non-installed purchases) (L x W x H) | 63″ x 27″ x 39″ (160.02 cm x 68.58 cm x 99.06 cm)
|
WHICH SERIES IS RIGHT FOR YOU?
Upright bikes for every budget and exerciser’s needs.
Life Fitness
ELEVATION LIFECYCLE UPRIGHT EXERCISE BIKE
- Premium cardio equipment with an inviting modern design
- Two console options that include feature-rich entertainment
- Seamless software updates and detailed product data via Halo.Fitness
Life Fitness
INTEGRITY+ LIFECYCLE UPRIGHT BIKE
- Sleek cardio equipment with the Discover SE4 Console, the pinnacle of console technology
- Eye-catching design aesthetics and added functionality with uncompromised durability
- Seamless software updates and detailed product data via Halo.Fitness
Life Fitness
ASPIRE LIFECYCLE UPRIGHT EXERCISE BIKE
- A modern, streamlined design that provides trusted reliability and outstanding operational efficiency
- Includes the simple SL console, which allows any exerciser to get into a workout quickly and easily
- Seamless software updates and detailed product data via Halo.Fitness
